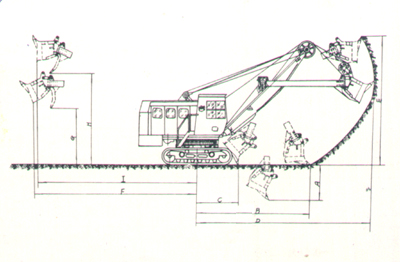

Specification and working range of shove
Main technical parameters
Code
Description
Size
Unit
Bucket capacity
1.0
cn.m
Boom length
6800
m m
Dipper handle length
4900
m m
α
Boom angle
45
60
degree
A
Max.cutting depth below ground level
2000
1500
m m
B
Max.radius of clean up
6400
5700
"
C
Min.radius of clean up
3300
3600
"
D
Max.digging radius
9800
9000
"
E
Max.digging height
8000
9000
"
F
Max.dumping radius
8700
8000
"
G
Dumping height at max.dumping radius
3300
3700
"
H
Max.dumping height
5500
6800
"
I
Dumping radius at max.dumping height
8000
7000
"
Working weight
42200
kg
Average ground pressure
0.927
kg/cm
2
